Engine Underhood Flow Analysis

Engine Underhood Flow Analysis

Objective

Carry out Underhood air flow analysis required at max torque speed of 2000 rpm with a vehicle velocity of 12.4 kmph



Methodology

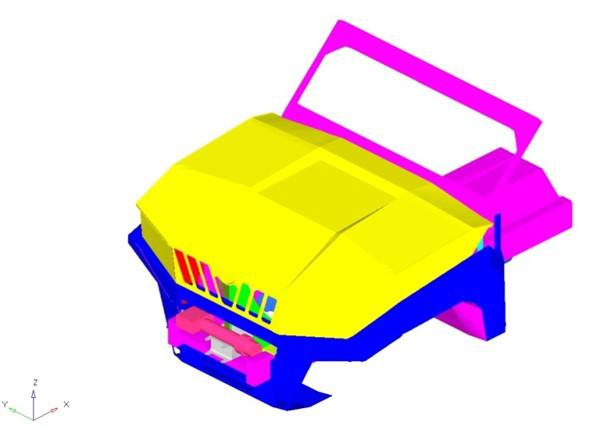

  • FE model
  • Steady state simulation
  • Radiator, Condenser and other coolers modeled as porous medium
  • Fan modeled using characteristic curve



Technology

Openfoam



image01 image01 image01 image01
